ServiceNow to Databricks

fa source inspect servicenow
fa source plan servicenow --variant servicenow_platform

The source pack covers tables, dictionary metadata, references, choices, audit history, attachments, workflows, access controls, and reporting consumers. An admitted connector or table-API adapter performs extraction; Airlift records its immutable inventory, sys_updated_on cursor, deletion policy, pagination boundary, restart checkpoint, and freshness result.

Airlift keeps dynamic or extended tables, ACL-filtered records, journal fields, large attachments, and custom scripted APIs visible until a developer or business owner dispositions them. Validation compares table and field counts, reference integrity, choice mappings, audit history, access behavior, ITSM metrics, and performance windows.

After the baseline is certified, a separate release can create governed IT operations data products with Lakeflow Connect, Delta history, Unity Catalog, and Databricks SQL.

The pack is cataloged; connector completion alone cannot promote its support level.

Complete developer command sequence

Generate this exact recipe from the installed CLI so the guide and executable surface stay in sync:

fa source recipe servicenow
fa source recipe servicenow --variant servicenow_platform --json > .airlift/servicenow-recipe.json

The App is engagement-aware. ServiceNow appears under Active sources only after the source estate is added to an active engagement. The menu is derived from governed engagement scope; installing Airlift does not expose unrelated source pages.

Every remote mutation below requires --host, --org, authenticated workspace identity, and a stable --idempotency-key. JSON request files contain identifiers, artifact references, and opaque credential references—never passwords, tokens, or connection strings. Run fa <resource> <operation> --help for the current schema and exit semantics.

0. Inspect the source contract

fa source inspect servicenow --json > .airlift/servicenow-profile.json
fa source plan servicenow --variant servicenow_platform --json > .airlift/servicenow-capability-plan.json

Expected artifacts:

• .airlift/servicenow-profile.json
• .airlift/servicenow-capability-plan.json

Open Engagements → active engagement in the App. This stage is visible at /engagements after replacing the placeholder ID with the governed engagement ID.

1. Create governed scope and connection references

fa engagement create --file engagement.json --idempotency-key migration-create-v1
fa estate register --file servicenow-estate.json --idempotency-key servicenow-estate-v1
fa connection register --file servicenow-connection.json --idempotency-key servicenow-connection-v1
fa engagement update --file servicenow-scope.json --idempotency-key servicenow-scope-v1
fa engagement preflight <engagement-id>

Expected artifacts:

• Governed engagement
• Source estate
• Opaque connection binding

Open Engagements → active engagement in the App. This stage is visible at /engagements/<engagement-id> after replacing the placeholder ID with the governed engagement ID.

2. Assess and accept inventory

fa assessment start --file servicenow-assessment-start.json --idempotency-key servicenow-assessment-start-v1
fa assessment status <assessment-id> --json
fa assessment record --file servicenow-assessment-record.json --idempotency-key servicenow-assessment-record-v1
fa assessment accept --file servicenow-assessment-accept.json --idempotency-key servicenow-assessment-accept-v1
fa inventory list --estate-id <estate-id> --json

Expected artifacts:

• Assessment report reference
• Normalized inventory
• Dependency graph

Open Engagements → active engagement in the App. This stage is visible at /engagements/<engagement-id>/sources/servicenow after replacing the placeholder ID with the governed engagement ID.

3. Implement the admitted source adapter

No source-specific executable compiler exists in this release. Continue with assessment, governed work, and an admitted adapter; Airlift does not invent executable output.

Expected artifacts:

• Capability plan and adapter requirements only

Open Engagements → active engagement in the App. This stage is visible at /engagements/<engagement-id>/artifacts after replacing the placeholder ID with the governed engagement ID.

This source is cataloged or assessable but has no source-specific executable compiler in the installed Airlift generation.

4. Convert, move, and remediate

fa plan generate --file servicenow-migration-plan.json --idempotency-key servicenow-plan-v1
fa conversion batch create --file servicenow-batch.json --idempotency-key servicenow-batch-v1
fa conversion batch start --file conversion-batch-start.json --idempotency-key conversion-start-v1
fa residue list --engagement-id <engagement-id>
fa transfer plan --file servicenow-transfer.json --idempotency-key servicenow-transfer-v1
fa transfer run <transfer-id> --idempotency-key transfer-run-v1
fa transfer reconcile <transfer-id> --idempotency-key transfer-reconcile-v1

Expected artifacts:

• Target artifacts
• Residue cases
• Transfer checkpoints
• Reconciliation evidence

Open Engagements → active engagement in the App. This stage is visible at /engagements/<engagement-id>/runs after replacing the placeholder ID with the governed engagement ID.

5. Validate independently and inspect discrepancies

fa validation run --file servicenow-validation.json --idempotency-key servicenow-validation-v1
fa validation status <validation-execution-id> --json
fa discrepancy list --engagement-id <engagement-id>
fa artifact list --engagement-id <engagement-id>

Expected artifacts:

• Provider run references
• Readiness evidence
• Discrepancies

Open Engagements → active engagement in the App. This stage is visible at /engagements/<engagement-id>/runs after replacing the placeholder ID with the governed engagement ID.

6. Certify, cut over, and export evidence

fa certificate list --object-id <object-id>
fa cutover status <wave-id> --json
fa evidence list --engagement-id <engagement-id>
fa evidence export --file servicenow-evidence-export.json --idempotency-key servicenow-evidence-export-v1

Expected artifacts:

• Migration certificates
• Cutover evidence
• Content-digested evidence export

Open Engagements → active engagement in the App. This stage is visible at /assurance after replacing the placeholder ID with the governed engagement ID.

Runway executes releases; Experiments owns validation verdicts; Airlift owns migration readiness and cutover policy.

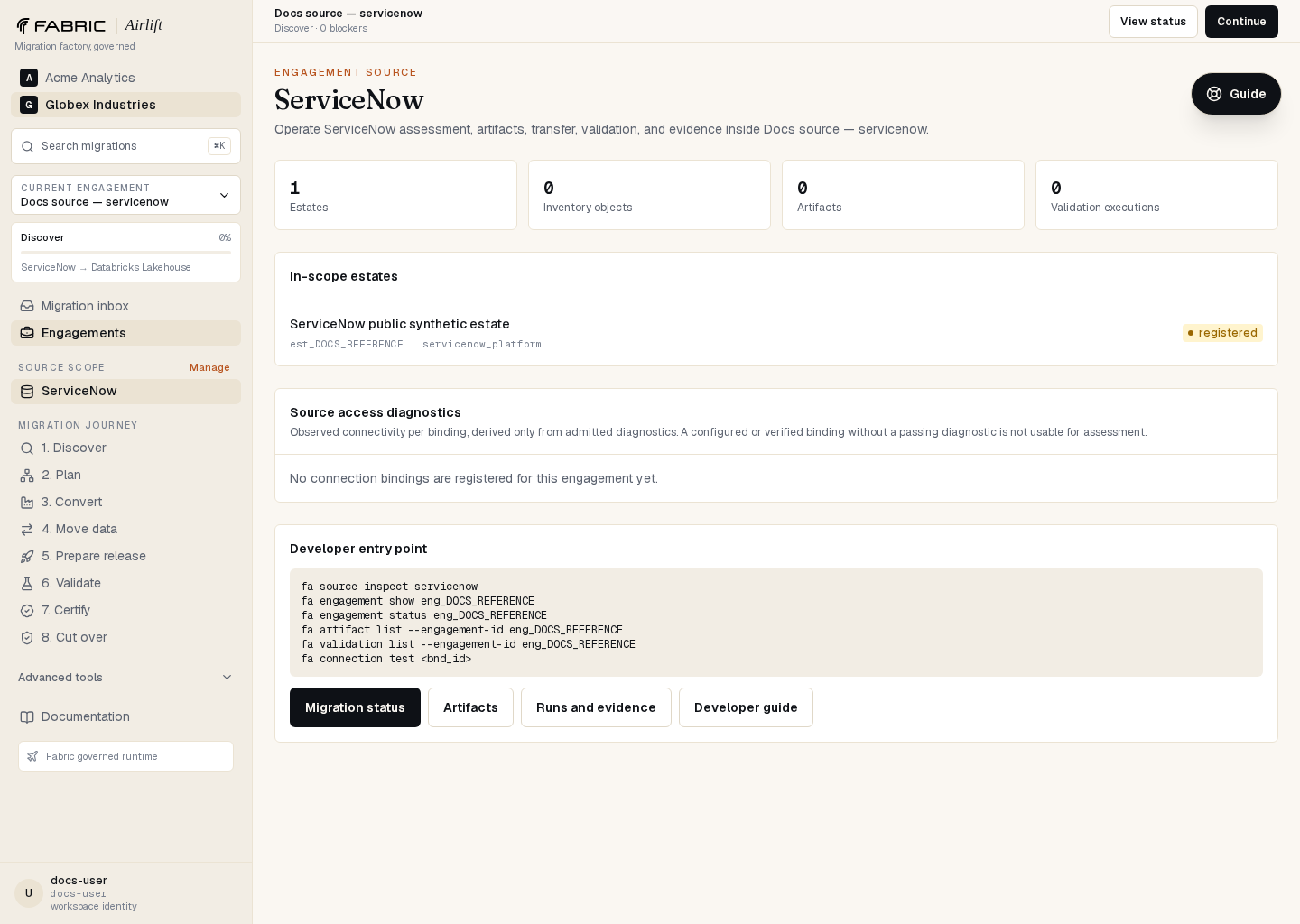

What developers see in the App

The contextual source workspace shows the accepted estate and the factory stages for this engagement. Artifacts displays immutable references, content digests, media types, and provider lineage. Runs displays assessment, conversion, transfer, validation, and deployment executions without treating a provider's success as an Airlift verdict.

View full size

These are automated captures from public synthetic engagements. The source workspace is specific to ServiceNow; no unrelated source is presented as its migration journey. For sources without an evidence-backed journey, the image demonstrates setup, navigation, and developer entry points only—not a live connection, converted output, or certified migration. No client data, credentials, workspace hostnames, or internal deployment identifiers are embedded in the images.
